Component review & DFM
Review geometry, wall sections, draft, radii, parting considerations, critical features and machining allowances.
Manufacturing expertise
Aluminium casting support from drawing to production
A connected service covering component review, gravity-die development, aluminium casting, specified machining, inspection and repeat supply for industrial OEM requirements.
Engineering-ledCustom manufacture
Drawing reviewFeasibility and DFM
Die developmentTooling for the component
Casting + machiningDefined supply scope
Repeat productionPlanned batch supply
Integrated project support
Manufacturing decisions connected across every stage
A reliable casting project begins before molten metal reaches the die. Component geometry, alloy, expected quantity, tooling concept, casting method, machining allowances and inspection requirements influence one another.
By reviewing these inputs together, we help buyers move from an initial drawing or sample toward a clearly defined, manufacturable component and repeat production plan.
Core capabilities
Services across the casting lifecycle
Each service is scoped to the approved drawing, commercial quantity and agreed division of responsibility.
Die design & development
Plan gravity-die tooling around filling, feeding, release, trimming and the expected production requirement.
Gravity die casting
Manufacture custom aluminium alloy components for electrical, thermal and general engineering applications.
Insert casting
Consider customer-specified inserts and embedded features where component design and process feasibility allow.
Machining
Machine defined faces, bores, holes, threads and assembly interfaces according to the agreed drawing scope.
Inspection support
Plan dimensional and visual checks around agreed specifications, critical characteristics and documentation needs.
Process conversion review
Evaluate suitable repeat sand castings for possible conversion to gravity die casting and dedicated tooling.
Production supply
Move approved components into scheduled batch manufacture, inspection, packing and dispatch.
Project workflow
A practical route from RFQ to repeat supply
Stage gates keep technical and commercial decisions aligned as the component moves toward production.
- 01
RFQ review
Drawing, alloy, quantities, application and required operations.
- 02
Feasibility
Geometry, tooling, casting route and risk considerations.
- 03
Commercial scope
Tooling, part price, machining, inspection and delivery terms.
- 04
Tool development
Die manufacture and preparation of the planned production process.
- 05
Sampling
Initial castings, dimensional evaluation and customer feedback.
- 06
Production
Approved batch manufacture, inspection and dispatch.

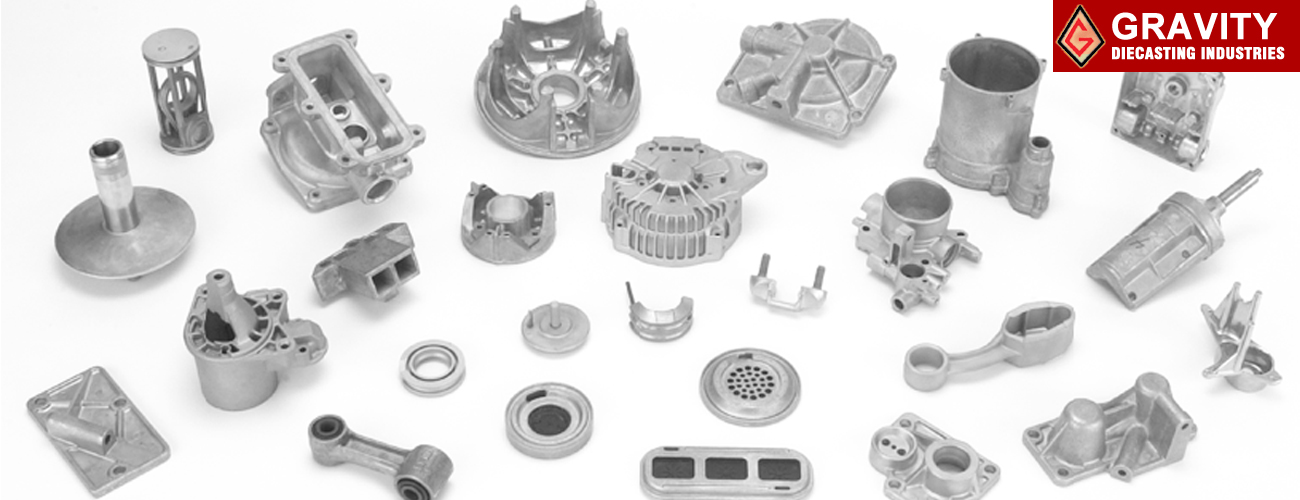

Application experience
Specialist and general casting categories
Our experience spans product families where enclosure shape, thermal performance, mounting accuracy or mechanical fit drives the casting design.
- Aluminium heat sinksFinned cast components for thermal management
- Electrical castingsMotor frames, junction bodies, covers and housings
- Flame-proof housing castingsEnclosure components made to approved drawings
- General engineering castingsCustom housings, flanged bodies and OEM components
Value engineering
Sand casting to gravity die casting review
For suitable repeat parts, dedicated gravity-die tooling may offer better repeatability, surface condition, production rate or reduced downstream work. Any benefit depends on the actual component and annual demand.
Request a conversion review →ReviewGeometry and alloy
CompareVolume and tooling
DefineMachining and quality
ValidateSamples and economics
Quality planning
Inspection begins with an agreed technical definition
Before production, the drawing, material, critical dimensions, functional expectations and required documentation should be clear. The inspection scope can then be matched to the component and application.
- Controlled drawing and revision
- Specified alloy and material requirements
- Critical dimensions and datums
- Visual and surface expectations
- Machining and interface checks
- Agreed reports or documentation
Prepare your RFQ
Information that supports a useful review
Complete technical and commercial inputs reduce assumptions and help us respond with the right questions.
- 2D drawing and available 3D model
- Physical sample, when drawings are unavailable
- Aluminium alloy or applicable material standard
- Annual demand and expected batch size
- Machining, insert and finish requirements
- Inspection, testing and delivery requirements
Frequently asked questions
Casting service FAQs
Useful starting points for sourcing, engineering and vendor-development teams.
What aluminium gravity die casting services do you provide?
Services include component and feasibility review, die design and development, gravity die casting, insert casting, specified machining, inspection support and repeat production supply.
Can you develop tooling for a new component?
Tool development can be considered after reviewing the approved drawing, alloy, annual quantity, critical features, machining scope and commercial requirements.
Can a sand casting be converted to gravity die casting?
Suitable repeat components can be reviewed for possible conversion. Feasibility depends on geometry, alloy, volume, quality targets, tooling investment and validation needs.
What information is required for project review?
Provide the drawing and available 3D model or sample, alloy, annual and batch quantities, critical dimensions, machining, inserts, finishes, inspection needs and delivery location.
Start a casting project
Share your component drawing for review
Tell us the alloy, quantities, application, machining needs and delivery location. We will respond with the next practical step.
